T-Bolt Bracket - Various Degrees

No reviews yet Write a Review
SKU:
TBM-45
$44.99

Description

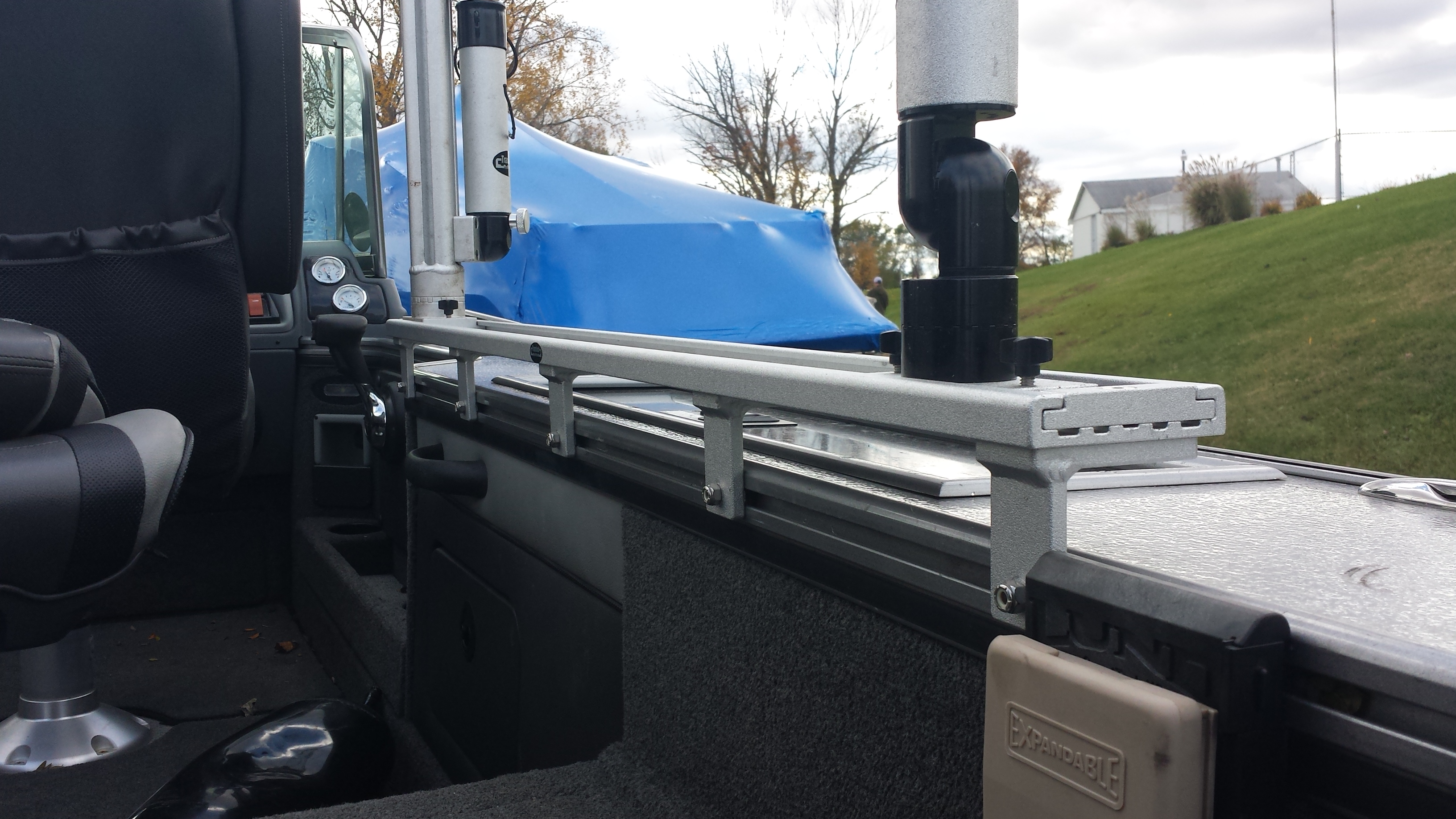

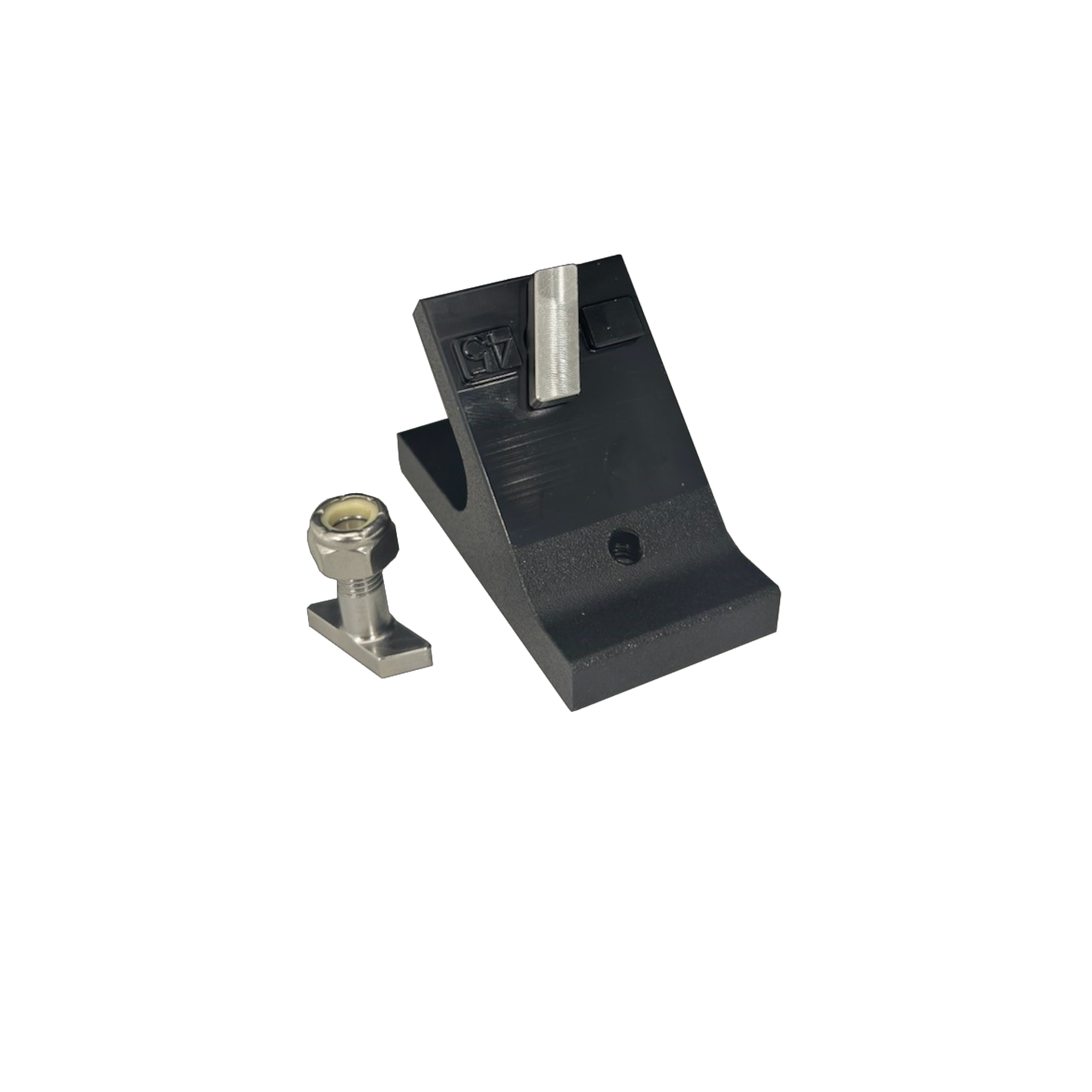

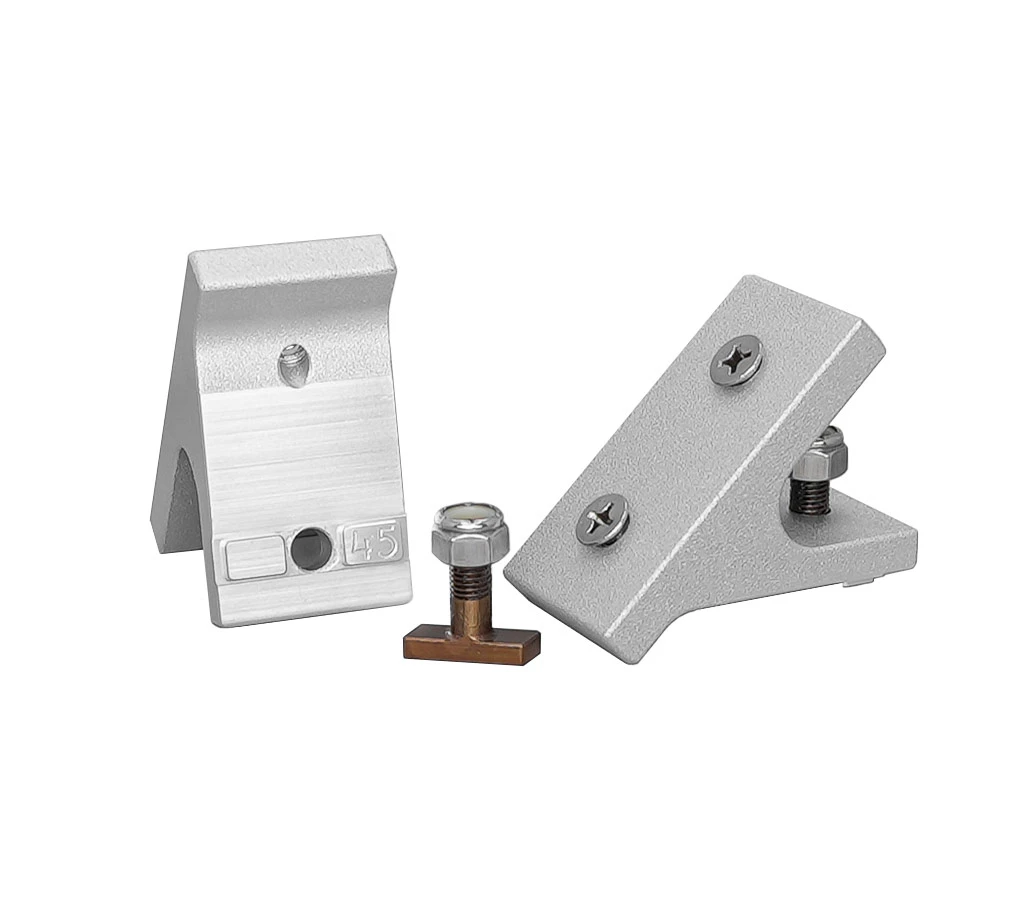

These machined aluminum T-Bolt Brackets allow our tracks and fishing accessories to securely mount on a boat’s gunwale. Each package comes with stainless steel T-nuts that are heat-treated and machined to securely attach the brackets to the boat. This allows any length of our track to mount to the top of the brackets to build your system without having to drill into the boat.

Traxstech T-Bolt Bracket FeaturesT-Bolt Bracket Features

  • Heavy duty aluminum bracket with stainless steel screw, washer, and T-slot nut.
  • Sold in pairs, these brackets allow the use of our tracks and all the accessories to be securely mounted on a boat that otherwise would not be very fisherman friendly.
  • Any length of track we offer can be used with these brackets, we recommend one bracket per set of mounting holes for maximum strength.
  • The T-Bolt Brackets are brand/model specific and the degree angle will vary between boat brands and models.

How many T-Bolt Brackets do I need per track?

Multiple brackets are needed to properly support the track length you choose and to get the most strength from your boat’s gunwale. Use the chart below to determine how many brackets you need. If you are going to use this mounting method for vertical trees or downriggers, our minimum suggested track length is 24” with four brackets for proper strength from the boat’s wall. The longer the track and the more brackets you use, the stronger your setup will be.

Mounting Track Brackets Needed
6” (MT-6 or BMT-6) 2 T-Bolt Brackets/1 Package
12” (MT-12 or BMT-12) 3 T-Bolt Brackets/2 Packages
18” (MT-18 or BMT-18) 3 T-Bolt Brackets/2 Packages
24” (MT-24 or BMT-24) 4 T-Bolt Brackets/2 Packages
36” (MT-36 or BMT-36) 5 T-Bolt Brackets/3 Packages
48” (MT-48 or BMT-48) 5 T-Bolt Brackets/3 Packages
60” (MT-60 or BMT-60) 7 T-Bolt Brackets/4 Packages
72” (MT-72 or BMT-72) 8 T-Bolt Brackets/4 Packages

Which T-Bolt Bracket Do I Need?

The angle of T-Bracket you need corresponds to the angle of your boat's gunwale. For example: if your boat's gunwale is 45 degrees, you will need our TBM-45.

Angle of Boat Gunwale Bracket Needed
45 Degrees TBM-45

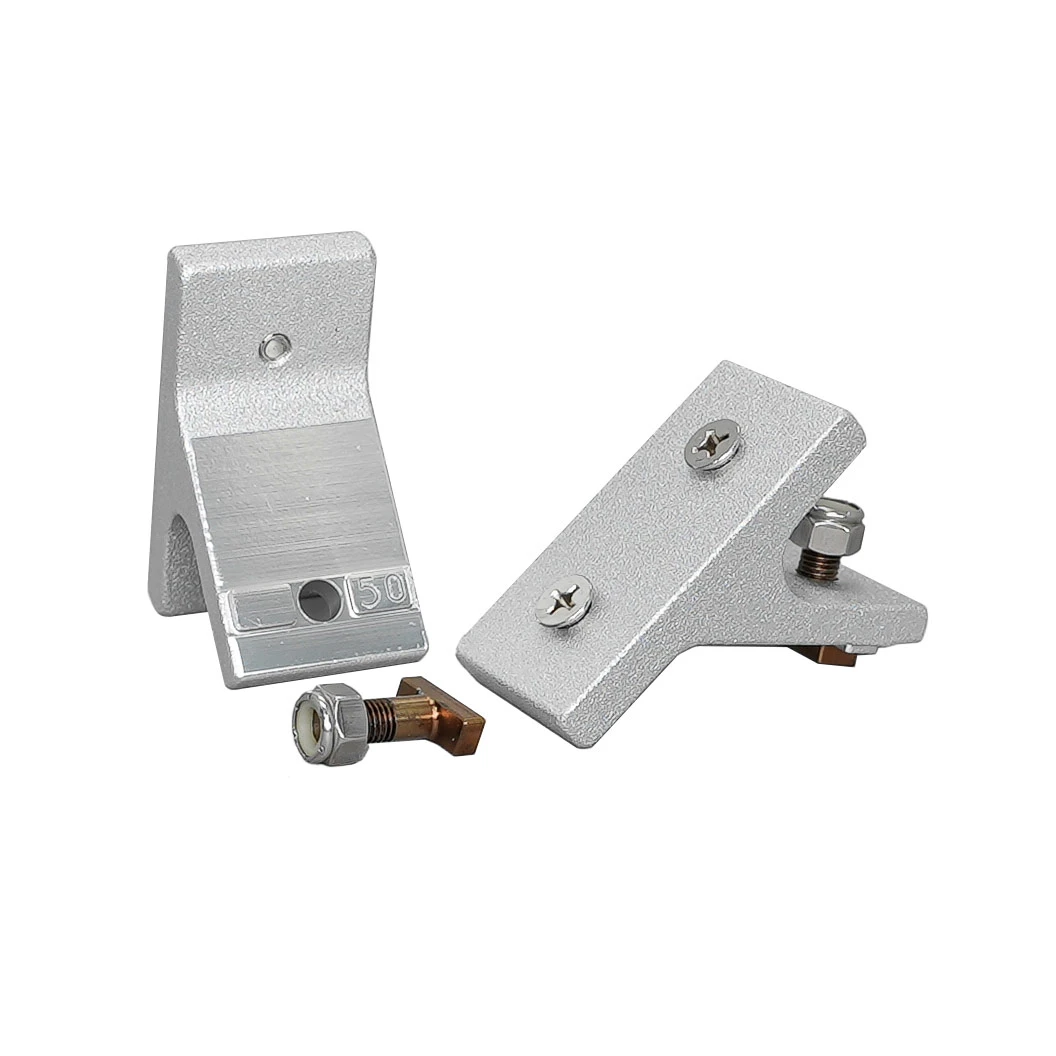

50 Degrees TBM-50

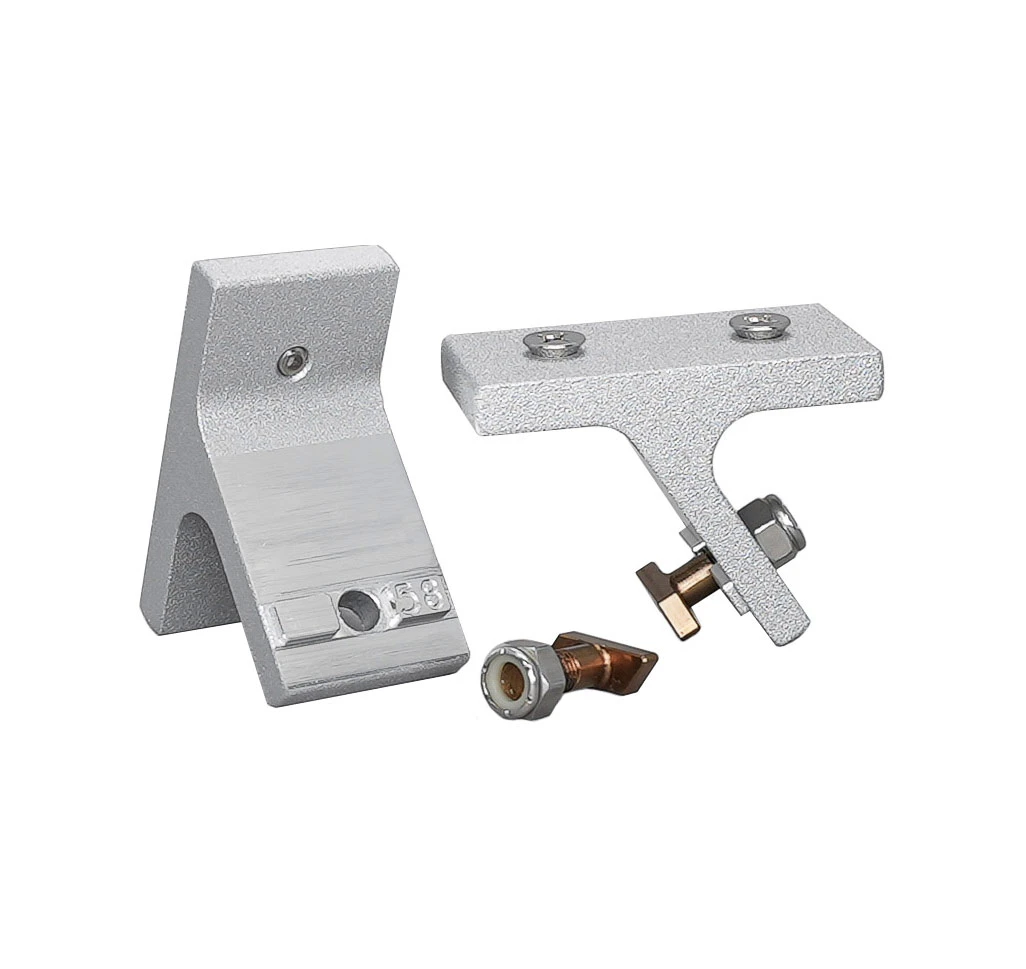

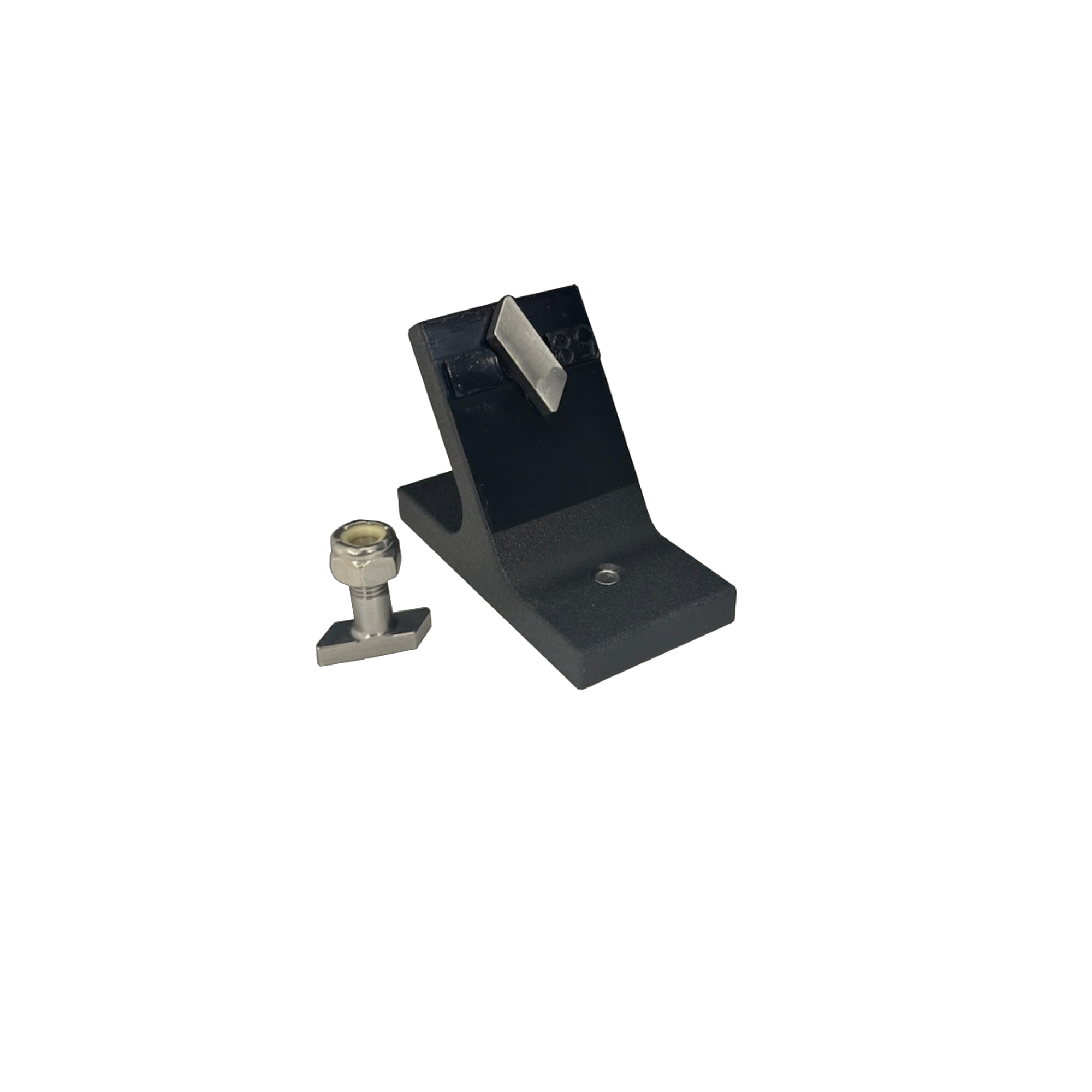

58 Degrees TBM-58
58 Degrees (Starcraft Boats) TBM-58SC

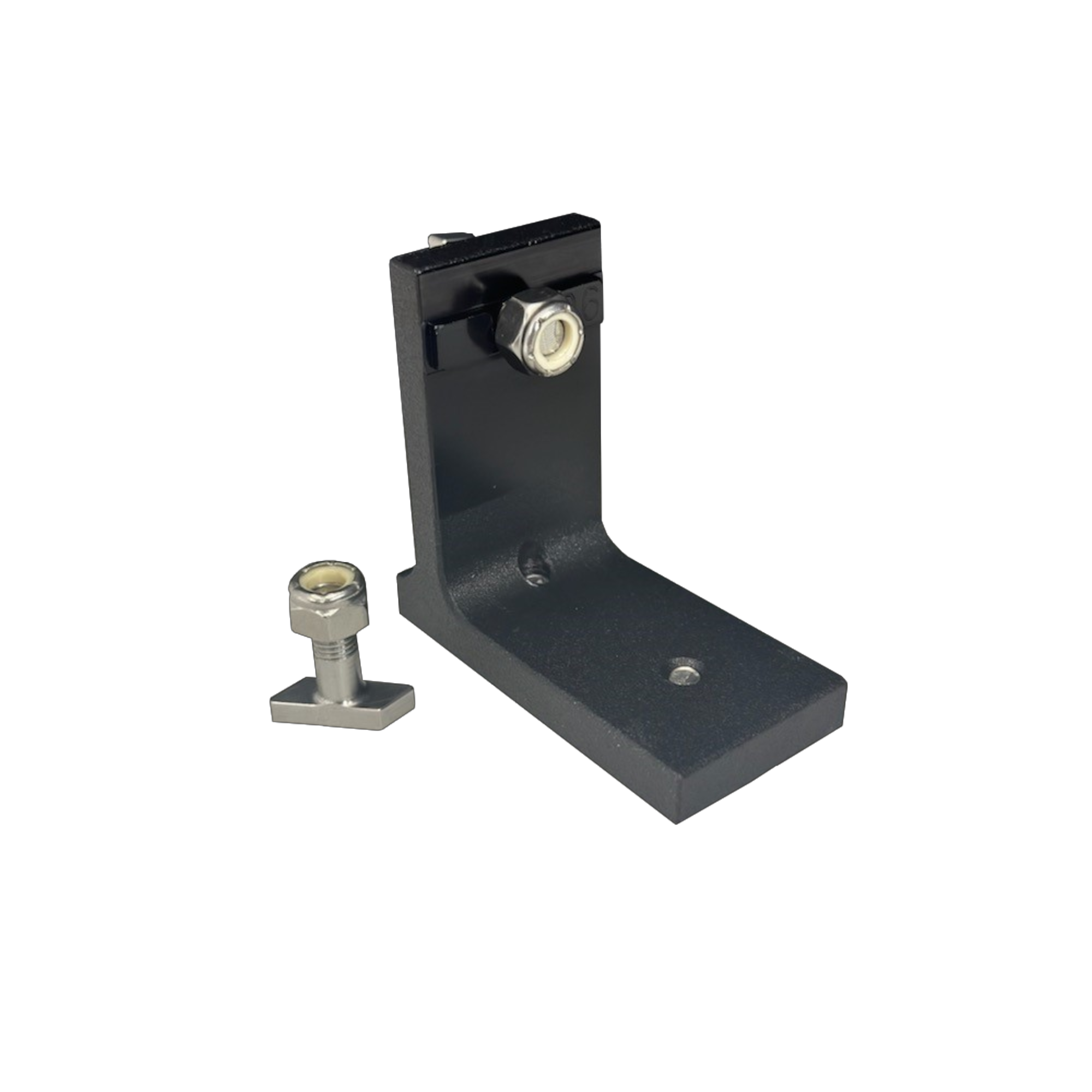

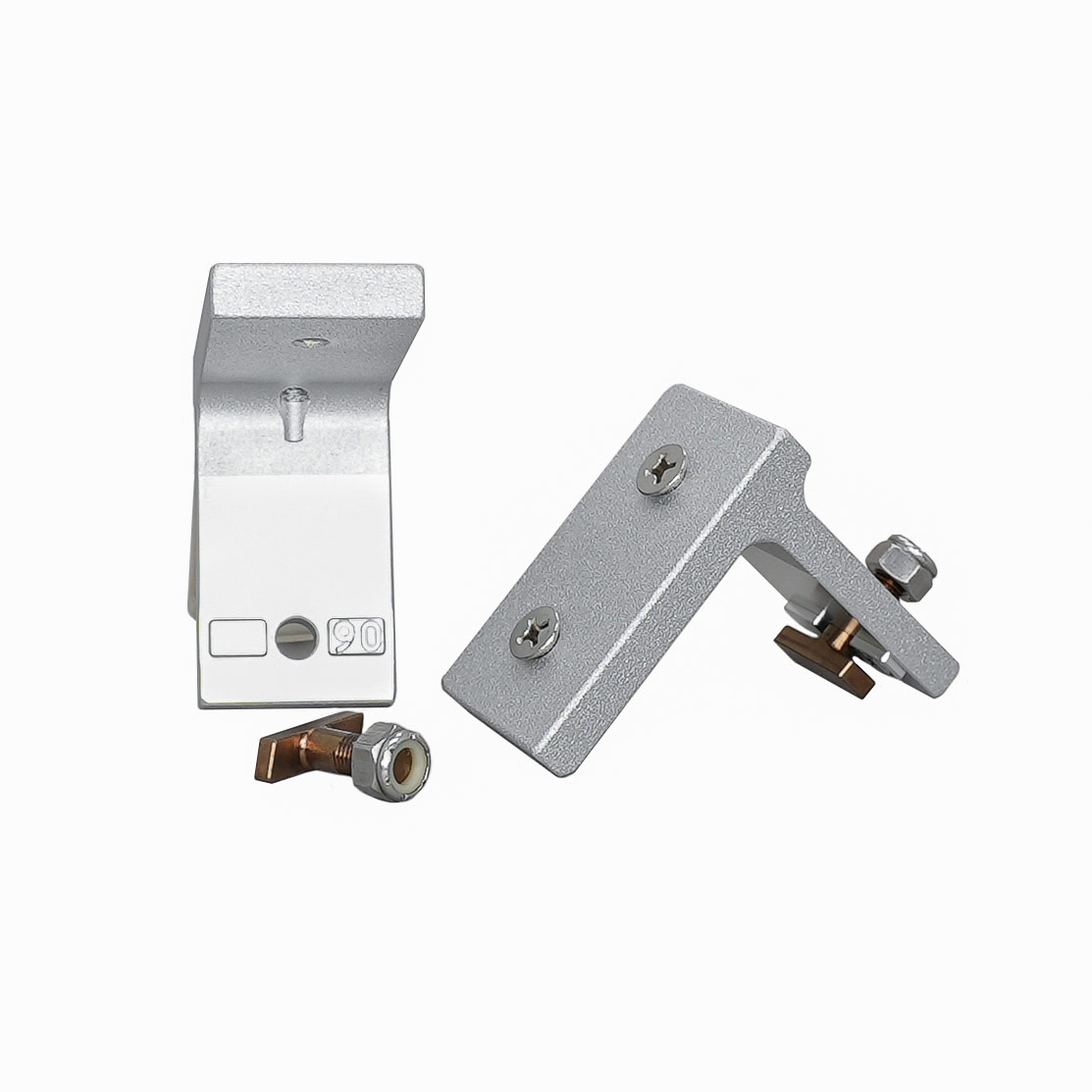

90 Degrees TBM-90

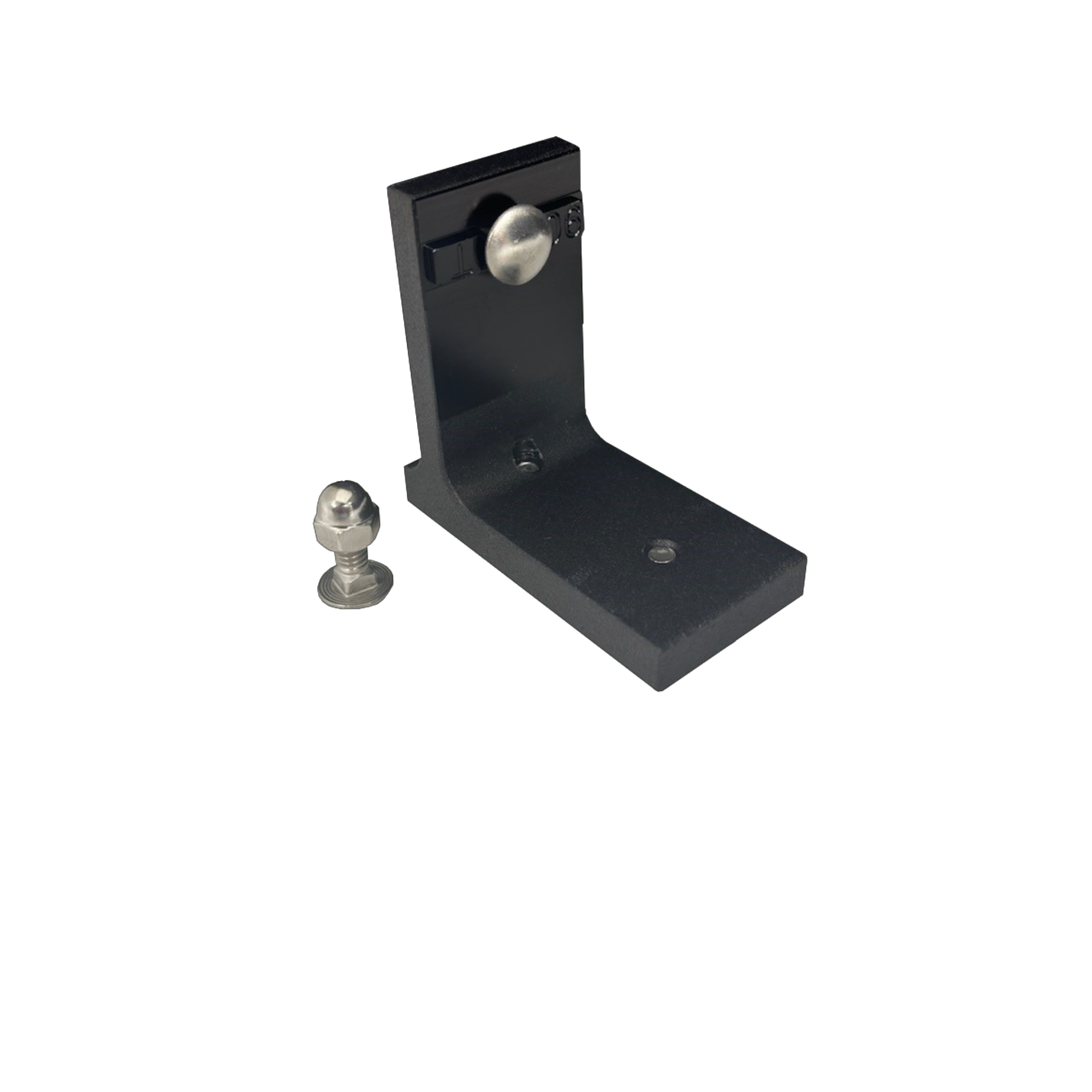

90 Degrees (Tracker Boats) TBM-90T

Frequently Asked Questions

Q. How do I determine which angle of T-Bolt Bracket I need for my boat?

A. To confirm the angle of your boat please use a protractor or download a protractor app:

Q. How many T-Bolt Brackets are recommended to mount a downrigger?

A. We recommend that you use at least a 24-inch track and 4 T-Bolt Brackets to distribute the weight. The longer the track the better when it comes to mounting and making your downrigger secure.

Q. Are these T-Bolt Brackets made out of plastic?

A. No, our brackets are made out of solid aluminum.

Additional Details

Made in the USA Signature Finish Color Options

Made in the USA

All of our parts are engineered and assembled by hand in Chesaning, Michigan.

Signature Finish

Signature textured finish adds durability to the solid machined aluminum components, hardens wear surface, offers a bright non-reflective finish, and is easy to clean.

Two Color Options

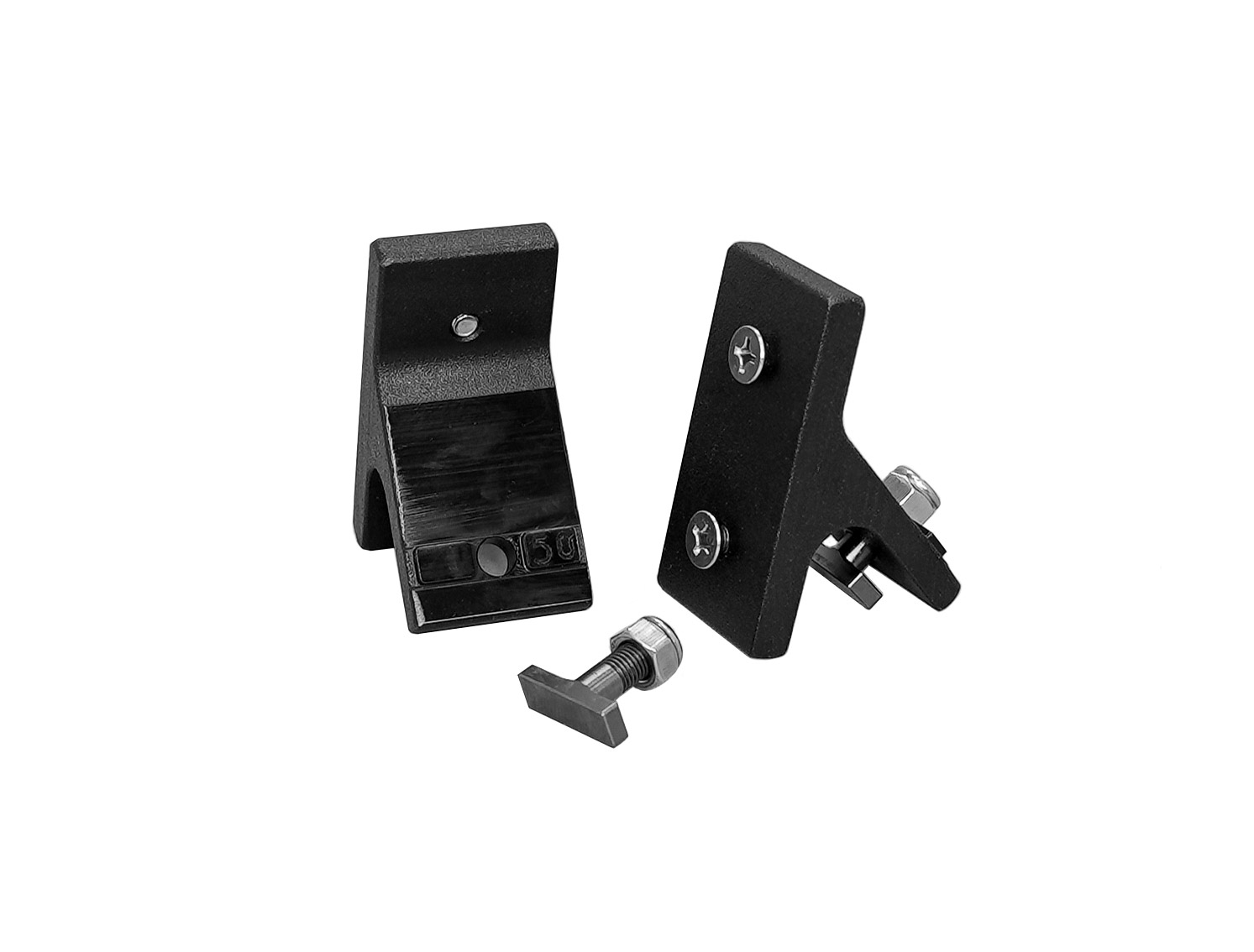

Personalize every part of your fishing system—even the color. Choose from our classic clear/silver or go bold with black.
