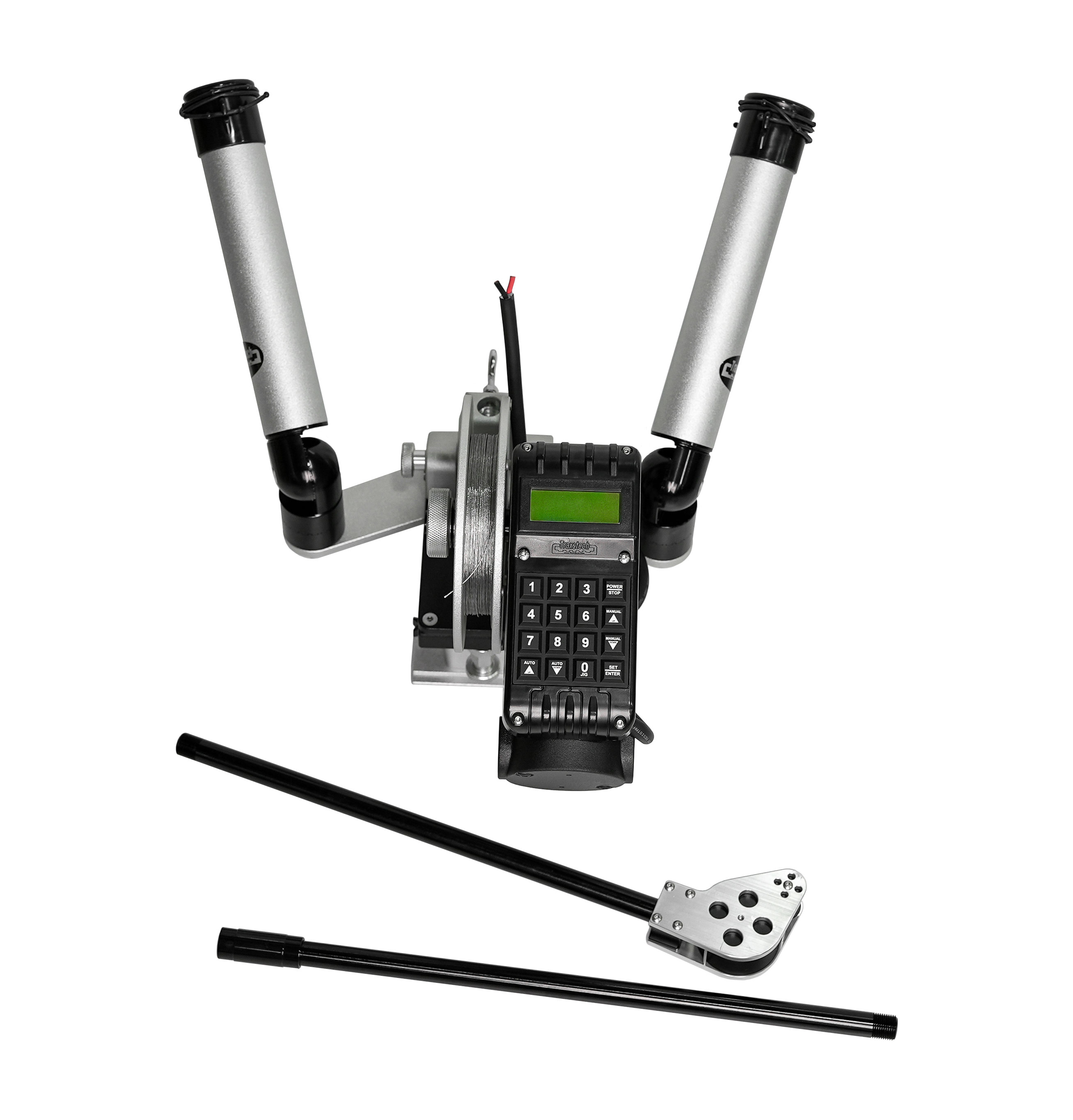

Downrigger Elite Series – Precision & Performance

Model: DRES-400

Traxstech's Downrigger Elite Series is designed for serious anglers who demand precision, durability, and advanced technology. With 400 feet of stainless-steel cable, an aluminum swivel base (Part: #SB-3) featuring 12 positive-lock positions, and a range of premium features, this downrigger delivers superior control and performance on the water.

Key Features:

✅ Premium Construction

• All-aluminum frame components for maximum strength and durability.

• Solid aluminum 3' boom with a Lift & Lock mechanism (optional lengths available).

• Dual roller pulley assembly on the boom for smooth operation.

✅ Versatile & Adjustable

• Dual 360° rotating rod holders with five adjustable positions for optimal placement.

• Includes a 3" aluminum swivel base (Part: #SB-3) with 12 locking positions at 30-degree intervals.

✅ Advanced Electronic Controls

• Lighted LCD display with large characters for easy readability.

• Electronic counter system for precise depth tracking.

• Soft stop technology integrated into the automatic up/down feature for smooth operation.

• Exact depth control with a military-grade 16-character keypad.

• Customizable jig function and depth memory feature.

✅ Superior Performance

• All-aluminum reel spool loaded with 400 ft. of 316 stainless-steel cable.

• Liquid-smooth drag system with an aluminum tension knob and retainer clip for secure adjustments.

• Retrieval speeds tested with:

  • 12 lb. weight – 265 ft./min

  • 14 lb. weight – 240 ft./min

  • 20 lb. weight – 200 ft./min

✅ Additional Inclusions

• Traxstech Electric Downrigger Cover (Part: #DRC-1) for added protection.

• Five-foot power cord (longer options available upon request for an additional charge).

Upgrade Your Fishing Game Today!

Built for performance and reliability, the Downrigger Elite Series is the perfect addition to any serious fishing setup. Order yours now and experience the difference!

Frequently Asked Questions:

Q. What size fuse does the Traxstech Downrigger use?

A. It is a 30 amp fuse. Maxi fuse holders and Maxi fuses are recommended for the in-line fuse used on the positive (white) wire lead. A 30 AMP circuit breaker could also be used in place of the inline fuse if you have a good place with easy access to mount it to.

Q. How should I wire my Traxstech Downrigger? Should I run lines for each rigger separately with inline fuses near battery then circuit breakers near the riggers itself?

A. Each rigger should have its own wiring with inline fuses. It is not required to have both fuses and a circuit breaker.

Q. I have 2 Traxstech Downriggers. Can I run one set of wires for both riggers?

A. No, Do not run multiple riggers from the same set of wires. Each down-rigger should have it's own set of wires.

Q. What gauge wire should I use to install my Traxstech Downrigger?

A. 10/2 wiring is needed if the leads are 15 feet or less in length for a single down-rigger. If you are wiring for multiple riggers going to an actual fuse/circuit panel, then we recommend 4 or 6 gauge wire as the main feed to the panel in the back of the boat. Then use 10 gauge wire from the panel to each rigger.

Q. What brand of plug do you recommend for the Traxstech Downrigger?

A. We recommend using Marineco (70 AMP) 3 wire charging/trolling system plug. They are sold on Amazon.

• 70A continuous rating
• Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
• Corrosion resistant plated brass electrical components
• Receptacle contains a watertight sealing cap
• Plug contains Integrated strain relief and keyed design with thumbprint locator

Q. How much line comes on my Traxstech Downrigger?

A. We include 400 feet of line on each of our Traxstech Downriggers.

Q. What pound test is the line on my Traxstech Downrigger?

A. It is 150# test line installed on our Traxstech Downriggers.

Q. I lost the cover for my Traxstech Downrigger, do you sell replacements?

A. Yes, we do. Buy a new Traxstech Electric Downrigger Cover here.

Q. Do I need to buy a swivel base for my Traxstech downrigger?

A. All of our Traxstech downriggers come with our (Part: #SB-3) Aluminum 3" swivel base.

Q. My downrigger won’t power on — what should I check?

A. Traxstech downriggers require a fully charged battery delivering 14.6 volts for the unit to power on. If voltage is below this level, the downrigger will not turn on.

Q. One of my Traxstech downriggers won’t power on — what should I check?

A. If only one downrigger isn’t working, unplug it and test it in a different location on the boat where another downrigger is functioning. If it powers on there, the original plug likely has a defect and may need to be replaced.

If it still doesn’t work, inspect the power cable going to the downrigger. Look closely for any wear, mouse chew marks, or corrosion. If you find damage, the power cable may need to be replaced.

If none of the above issues are present, the unit may need to be sent in for repair. Please remove the boom and base, and send only the motor, keypad, and reel. Be sure to include the required repair form found on our website, pack the unit securely, and ship it with insurance. If you live in Michigan, you may arrange to drop it off at our facility for repair.

The Traxstech Difference

Made in the USA All of our parts are engineered and assembled by hand in Chesaning, Michigan.	Signature Finish Signature textured finish adds durability to the solid machined aluminum components, hardens wear surface, offers a bright non-reflective finish, and is easy to clean.	Two Color Options Personalize every part of your fishing system—even the color. Choose from our classic clear/silver or go bold with black.
